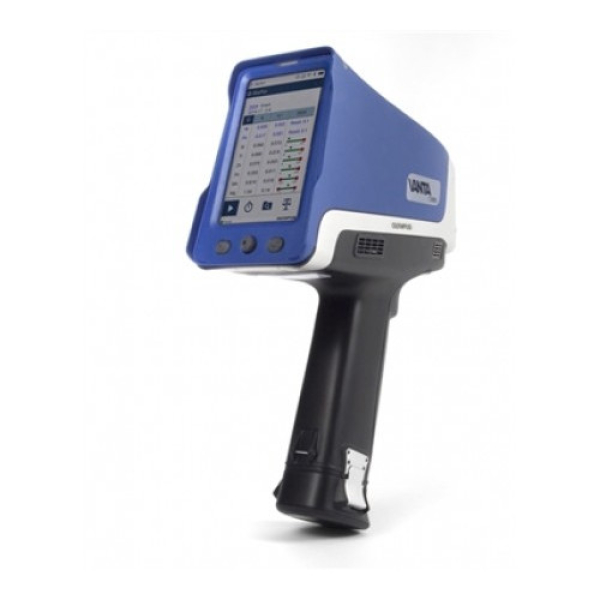

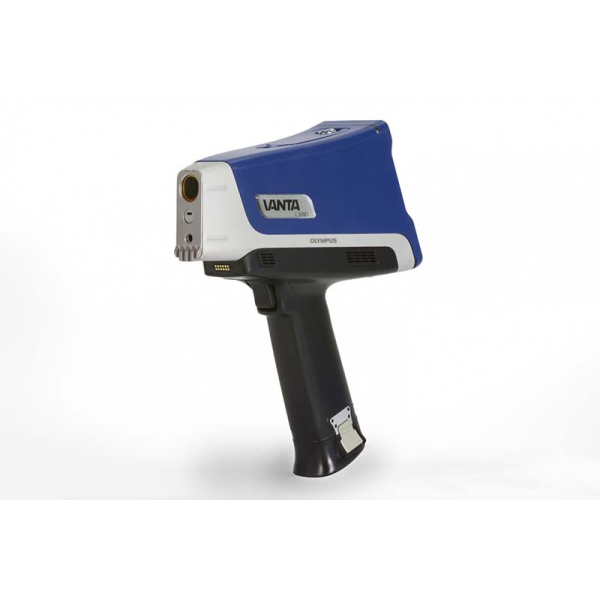

New Olympus Vanta L Series Handheld XRF Analyzer | Handheld XRF Analyzer | Olympus Vanta L Series | Olympus Vanta XRF Analyzer
When it comes to portable elemental analysis, the new Olympus Vanta L Series stands out as the ultimate industry-standard XRF analyzer. Manufactured by Evident (formerly Olympus NDT), the Vanta L Series combines rugged military-grade durability with next-generation analytical capabilities. Designed specifically for professionals who require fast, accurate, and non-destructive material identification, this handheld XRF analyzer brings laboratory-quality results directly to the field, factory floor, or scrapyard.
Equipped with a highly reliable Silicon PIN detector and powered by proprietary Axon Technology™, the Vanta L Series delivers the exceptional repeatability and lower limits of detection (LOD) that modern industries demand from a premium X-ray fluorescence analyzer.
Key Features & Search Intent Matches:
-
Unrivaled XRF Analyzer Precision: Featuring Axon Technology, this device utilizes ultra-low-noise electronics to deliver higher X-ray count rates per second, ensuring rapid, precise, and consistent chemistry data.
-
Built for Extreme Environments: The Vanta L Series is IP64 rated for dust and water resistance and drop-tested to military standards (MIL-STD-810G), making it the most rugged portable XRF analyzer on the market.
-
Streamlined Material Identification: Perfect for Positive Material Identification (PMI), scrap metal recycling, quality assurance (QA/QC) in manufacturing, and environmental soil screening.
-
Advanced Cloud Connectivity: Wirelessly export your alloy analysis data via Wi-Fi or Bluetooth directly to the Olympus Scientific Cloud for real-time reporting and seamless data management.
Why Choose the New Vanta L Series XRF Analyzer?
Investing in a new Vanta L Series XRF analyzer gives your business the perfect balance of affordability and elite brand performance. While it utilizes a rugged PIN detector instead of an SDD, its optimization via Axon Technology allows it to easily outpace other entry-to-mid-tier spectrometers. It is the ideal configuration for businesses seeking maximum uptime, low cost of ownership, and definitive “Pass/Fail” material sorting in seconds.
Performs in All Environments
Fully functional in temperatures ranging from -14 °F to 122 °F* (-25.5 °C to 50 °C).
IP55 (C and L series) and IP54 (M series and Vanta Element) rated for protection against dust and water intrusion.
Analyze hot samples up to 950 °F (510 °C) using the optional hot heel faceplate.
Durable
All Vanta™ models are built to pass a 4-foot drop test (MIL-STD-810G) to help withstand typical forces in field and manufacturing environments.
Detector Protection
Automatic eyelid shutter helps prevent costly detector damage (C and M series models).
L series analyzers are equipped with a thick Kapton® window and feature tool-less window change.
Olympus Scientific Cloud™
Enables real-time data backups, downloads, and screen sharing.
Instantly update software and firmware.
Fleet management capabilities help you and your team view and access instrument health statistics and GPS location.
Simple Interface
Intuitive user interface simplifies alloy identification.
Smartphone-like gesture operation: swipe, flick, and tap.
Customize the home screen buttons for frequently used operations.
Easy Data Management
Instantly export analysis results through optional wireless connectivity, the Olympus Scientific Cloud, or a USB flash drive.
Customize data labels and exports with Vanta™ PC software.
The Vanta™ Series
Olympus manufactures Vanta™ X-ray fluorescence (XRF) analyzers to suit a variety of applications depending on your needs. Each Vanta analyzer is engineered for durability and analytical superiority.
L Series
Get the ruggedness, ease of use, and data management features of Vanta analyzers in a cost-effective PIN instrument. The L Series is designed for maximum uptime and a lower cost of ownership for reliability in the field.
Vanta Specifications
| Dimensions (W × H × D) | 8.3 cm × 28.9 cm × 24.2 cm (3.25 in. × 11.4 in. × 9.5 in.) |
| Weight | L series: 1.70 kg (3.75 lb) with battery, 1.48 kg (3.24 lb) without battery |
| Excitation Source | (W) and Element (W): 35 kV (2 watts) |
| Primary Beam Filtration | L series and Element: Fixed aluminum filter and no internal collimation |
| Detector | L series and Element: Silicon PIN detector |
| Power | Removable 14.4 V Li-ion battery with hot-swap capability (M, C, and L series only) or 18 V power transformer 100–240 VAC, 50–60 Hz, 70 W max |
| Display | 800 × 480 (WVGA) LCD with capacitive touch screen supporting gesture control |
| Operating evnerionment | Temperature range for the M, C, and L series: −10 °C to 50 °C (14 °F to 122 °F), (continuous duty cycle with optional fan); Temperature range for the Element: −10 °C to 45 °C (14 °F to 113 °F) Humidity: 10% to 90% relative humidity non-condensing |
| Drop Test | Military Standard 810-G 4-foot (1.3 M) drop test |
| IP rating and Detector Shutter | IP55: dust protected and protected against water jets from all directions |
| GPS | Embedded GPS / GLONASS receiver |
| Operating System | Linux® Cloud enabled with user fleet manager capability |
| Data Stoarge | microSD™ slot with removable 1 GB industrial SD card included |
| USB | (2) USB 2.0 type A host ports for accessories such as wireless LAN, Bluetooth®, and USB flash drives. (1) USB 2.0 type mini-B port for connection to computer. |
| Wireless LAN | Supports 802.11 b/g/n (2.4 GHz) cable optional USB adaptor |
| Bluetooth | Supports Bluetooth® with an optional USB adapto |
| Aiming Camera | Full VGA CMOS camera (Optional on M, C, and L series) |
| Panoramic Camera | 5-megapixel CMOS camera with autofocus lens (Optional on M, C, and L series) |
- Availability:15 In Stock
- Model:Vanta L Series
- Brand:
